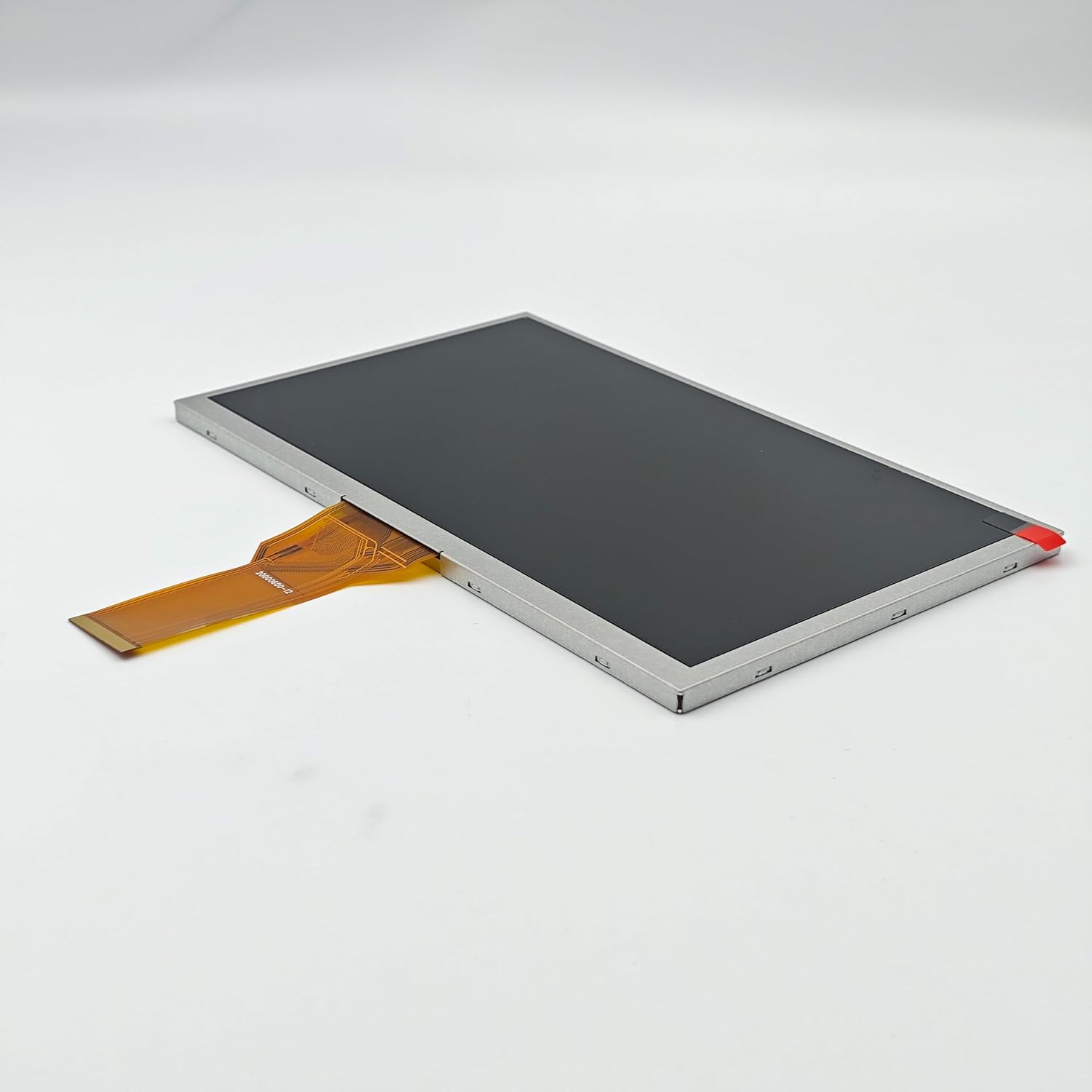

AT090TN12 V.3 9.0 Inch 800x480 TFT LCD Display Module for Industrial Equipment

AT090TN12 V.3 9.0 inch a-Si TFT-LCD display module with 800x480 WVGA resolution. TN normally white transmissive technology delivers 70/70/50/70 viewing angles (CR≥10) and 500:1 typical contrast ratio for clear and consistent image quality.With typical brightness of 300 cd/m² and antiglare surface coating, this display provides excellent visibility while minimizing reflections, making it suitable for industrial control systems, portable devices, human-machine interfaces, and digital photo frames.The module features a 3S11P WLED backlight rated at 20,000 hours typical lifetime. Please note this unit is supplied without a driver board, allowing for flexible integration into custom designs.Technical Specifications:Model: AT090TN12 V.3 Diagonal Size: 9.0 inch Display Type: a-Si TFT-LCD, LCM Resolution: 800 (RGB) x 480, WVGA, 16:9 Active Area: 198 (H) x 111.696 (V) mm Physical Size: 211.1 (H) x 126.5 (V) x 6.1 (D) mm Mass: 253g (Typ.) Surface Coating: Antiglare Luminance: 300 cd/m² (Typ.) Contrast Ratio: 500:1 (Typ.) Viewing Angle: 70/70/50/70 (Typ.)(CR≥10) View Direction: 6 o'clock Response Time: 10/15 (Typ.)(Tr/Td) ms Color Support: 262K/16.2M, 50% NTSC Operating Mode: TN, Normally White, Transmissive Light Source: 3S11P WLED, 20,000 hrs (Without Driver) Frame Rate: 55Hz Interface Type: TTL (1 ch, 6/8-bit), 50 pins FPC Power Supply: 3.3/10.8/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) Power Consumption: 2.35W (Typ.) Touch Panel: Not included Operating Temperature: -20 ~ 70 °C Storage Temperature: -30 ~ 80 °C

• 9.0-inch TFT LCD display with 800x480 WVGA resolution, delivering sharp and clear images for industrial equipment, DIY projects, and portable device replacements.
• 300 cd/m² brightness and 500:1 contrast ratio with antiglare surface coating, ensuring good visibility even in bright environments.
• Built to withstand tough conditions with operating temperature range from -20°C to 70°C and storage from -30°C to 80°C.

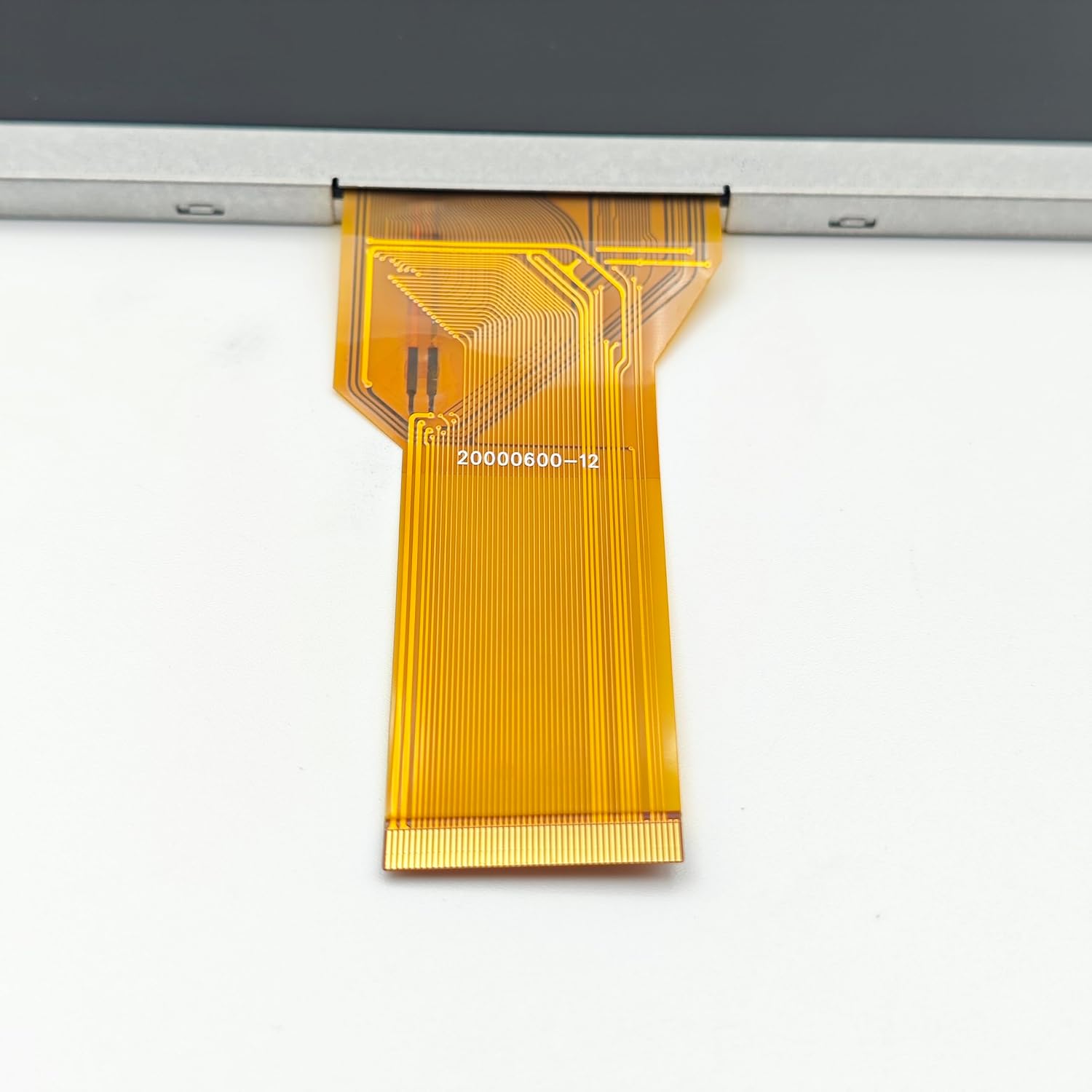

• Standard TTL interface via 50-pin FPC connector with 6/8-bit color support, making system integration simple and straightforward.
• 3S11P WLED backlight rated at 20,000 hours typical lifespan. (Note: Driver board not included.)
