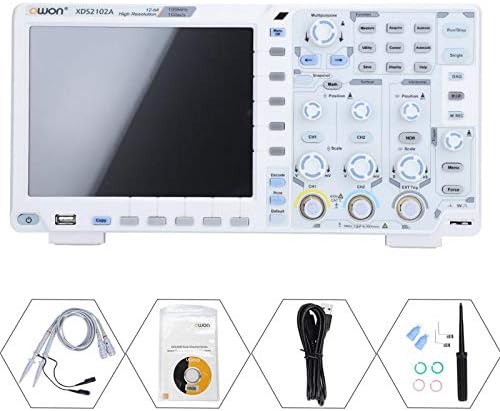

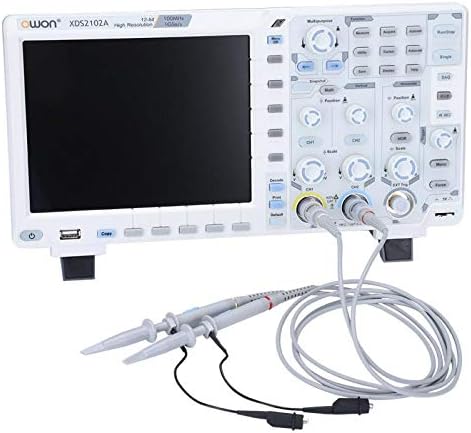

OWON XDS2102A 100MHz 12 bits High Resolution ADC Digital Oscilloscope 12bit ADC decode XDS2102A

OWON XDS2102A oscilloscope 12bits high resolution 100MHz bandwidth, 1GS/s sample rate 55,000 wfms/s refresh rate standard with SPI/I2C/RS232/CAN serial bus decoding Description Performance Specifications Model:XDS2102A Bandwidth:100MHz Sample Rate:1GS/s Vertical Resolution (A/D):12 bits Record length:20M Waveform Refresh Rate:55,000 wfms/s Horizontal Scale (s/div):2ns/div - 1000s/div, step by 1 - 2 - 5 Rise Time (at input, typical):≤3.5ns Channel:2 + 1 (external) Display:8" color LCD, 800 x 600 pixels Input Impedance:1MΩ ± 2%, in parallel with 15pF ± 5pF Channel Isolation:50Hz : 100 : 1, 10MHz : 40 : 1 Max Input Voltage:1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms DC Gain Accuracy:±1.5% DC Accuracy:average≥16：±(3% reading + 0.05 div) for △V Probe Attenuation Factor:0.001X - 1000X, step by 1 - 2 - 5 LF Respond (AC, -3dB):≥10Hz (at input, AC coupling, -3dB) Sample Rate / Relay Time:±1ppm Accuracy:Interpolation sin(x) / x:Interval (△T) Accuracy Single: ±(1 interval time + 1ppm x reading + 0.6ns); (full bandwidth) Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns) Input Coupling:DC, AC, and GND Vertical Sensitivity:1mV/div - 10V/div (at input) Trigger Type:Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,and CAN Bus Decoding;I2C, SPI, RS232, and CAN Trigger Mode:Auto, Normal, and Single Vertical Range:±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div) Line / Field Frequency (video) NTSC, PAL and SECAM standard Cursor Measurement: △V, and △T between cursors, △V and △T between cursors, and auto- cursors Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax,

• OWON XDS2102A 100MHz 12 bits High Resolution ADC Digital Oscilloscope OWON XDS2102A oscilloscope 12bits high resolution 100MHz bandwidth, 1GS/s sample rate 55,000 wfms/s refresh rate standard with SPI/I2C/RS232/CAN serial bus decoding
